1PCS/1SET 0/1-10V Zigbee 3.0 Smart AC Push LED Dimmer Switch Module 110V 220V APP Voice Control Wall Mounted Touch Remote(T11 B)

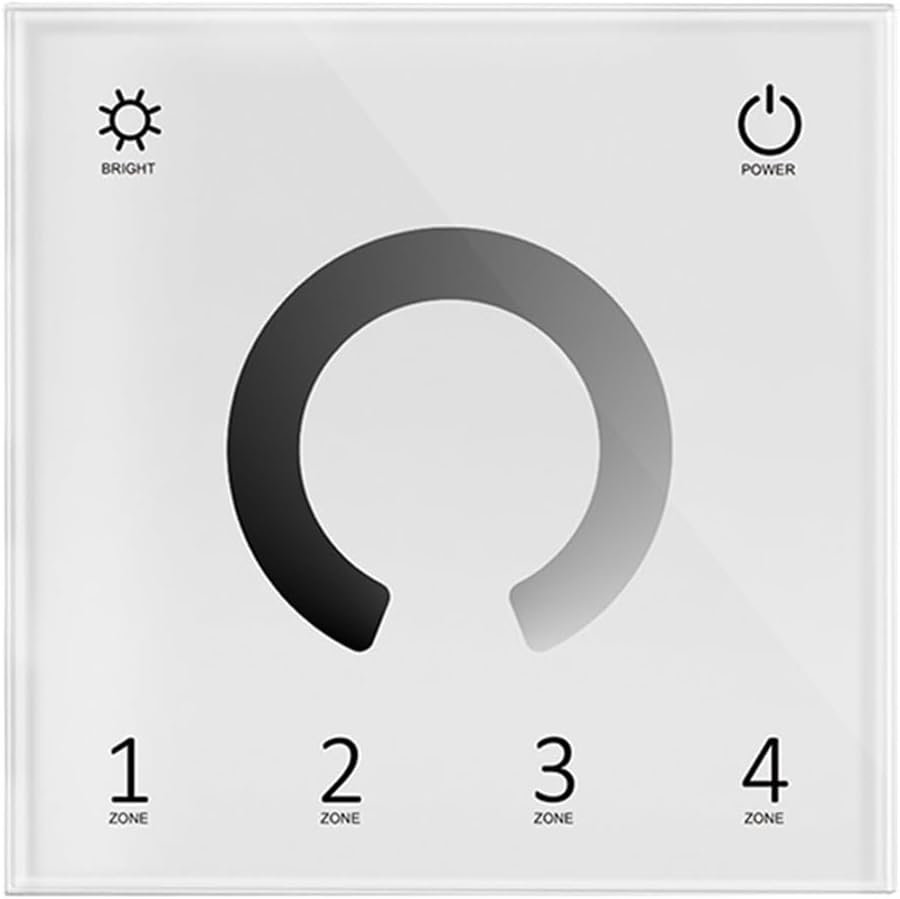

ControllersIndustrial Power SupplyWZL1: Zigbee 0/1-10V RF push dimmerT11: 4-zone touch remote controlfeatureZigBee + RF + AC push type 0/1-10V dimmer 1 channel output.Output 1 channel of 0/1-10V signal and connect to 0/1-10V dimming power supply.APP cloud control supports on/off brightness adjustment delayed on/off lights scheduled operation and scene functions.0-10V or 1-10V output can be selected through DIP switch.256 levels of 0-100% smooth dimming without any flicker.Compatible with RF 2.4G single zone or multi-zone dimming remote control.Each L1(WZ) controller can also act as a ZigBee-RF converter and then use the APP to synchronously control one or more RF dimming LED controllers or drivers.Connect an external push button switch to achieve on/off and 0-100% dimming functions.The light on/off fade time is 3 seconds optional.Easy to place in standard wall junction box behind push button switch.Input voltage: AC100-240VOutput signal: 0/1-10V (20mA)Output current: Maximum 1.5A (AC)Input signal: APP+RF 2.4GHz+Push DimRF control distance: 30m (barrier-free space)Dimming level: 256 levelsDimming range: 0-100%APP network connection and operationPress and hold the Match/Set button for 2 seconds to reset the ZigBee network.Press and hold the Match/Set key for 5 seconds Or press the Match/Set key twice quickly Clear previous network connections and enter configuration mode. The blue LED indicator flashes rapidly.If the APP network connection is successful The blue LED will stop flashing In the APP you can find the ZB-DIM device. APP interface operation: Touch the brightness slider to adjust the brightness.
