AITRIP 2PCS 2.8" ESP32S3 ESP32-S3 Touchscreen Module, 2.8" 240x320 IPS LCD Type-C EPS32 Display with WiFi Bluetooth Capacitive Touch Screen for Arduino IoT Projects

Specification：System - on - Chip: ESP32 - S3 ModuleCentral Processing Unit:Xtensa Dual - core 32 - bit LX7 MicroprocessorConnection Method :2.4GHz Wi - Fi (802.11 b/g/n) and Bluetooth5 (LE) ModuleDisplay Screen:2.8 - inch, 320×240 LCD DisplayDriver IC Model:ST7789P3Touch Chip IC:FT6336UViewing Direction:Full View AngleInterface:MCU8080 8 - bit InterfaceType:G + FPower Supply:DC 5V/1AOperating Temperature: - 20℃ to +70℃Hardware Overview:ESP32 - S3 Module (Model: WT32 - S3 - WROOM - N8R2)LCD 8080 InterfaceUSB InterfaceRS485 InterfaceExpansion IO InterfaceDebugging InterfacePackage: 2.8 - inch Development Board*2

• ESP32-S3 Touchscreen Module: 2.8-inch touch serial screen ESP32-S3R8 main control ST7789T3 driver Support communication interface RS485/WiFi/Bluetooth
• 2.8-inch Touch Serial Display, developed based on the ESP32-S3 chip, features a 2.8-inch touchscreen with integrated WiFi and Bluetooth functionality, supporting serial port control. Equipped with an integrated black embedded mounting bracket for easy installation and a sleek, minimalist appearance, it is suitable for smart appliances, smart home systems, industrial instruments, and other applications.
• The esp32 s3 Screen Features a 240x320 resolution color screen with 262K color depth (RGB666), capacitive touch, and wide viewing angles for a smooth interactive experience
• Driver IC:ST7789P3;Touch Chip IC: FT6336U;The esp32-s3 Screen is widely used in energy storage charging equipment, kitchen appliances (such as air fryers, ovens), household appliances (water heaters, washing machines), industrial control products, water quality detectors and other intelligent devices, as well as various scenarios that require LCD color screen display. It is an ideal choice for upgrading traditional segment code screens or black - and - white screens

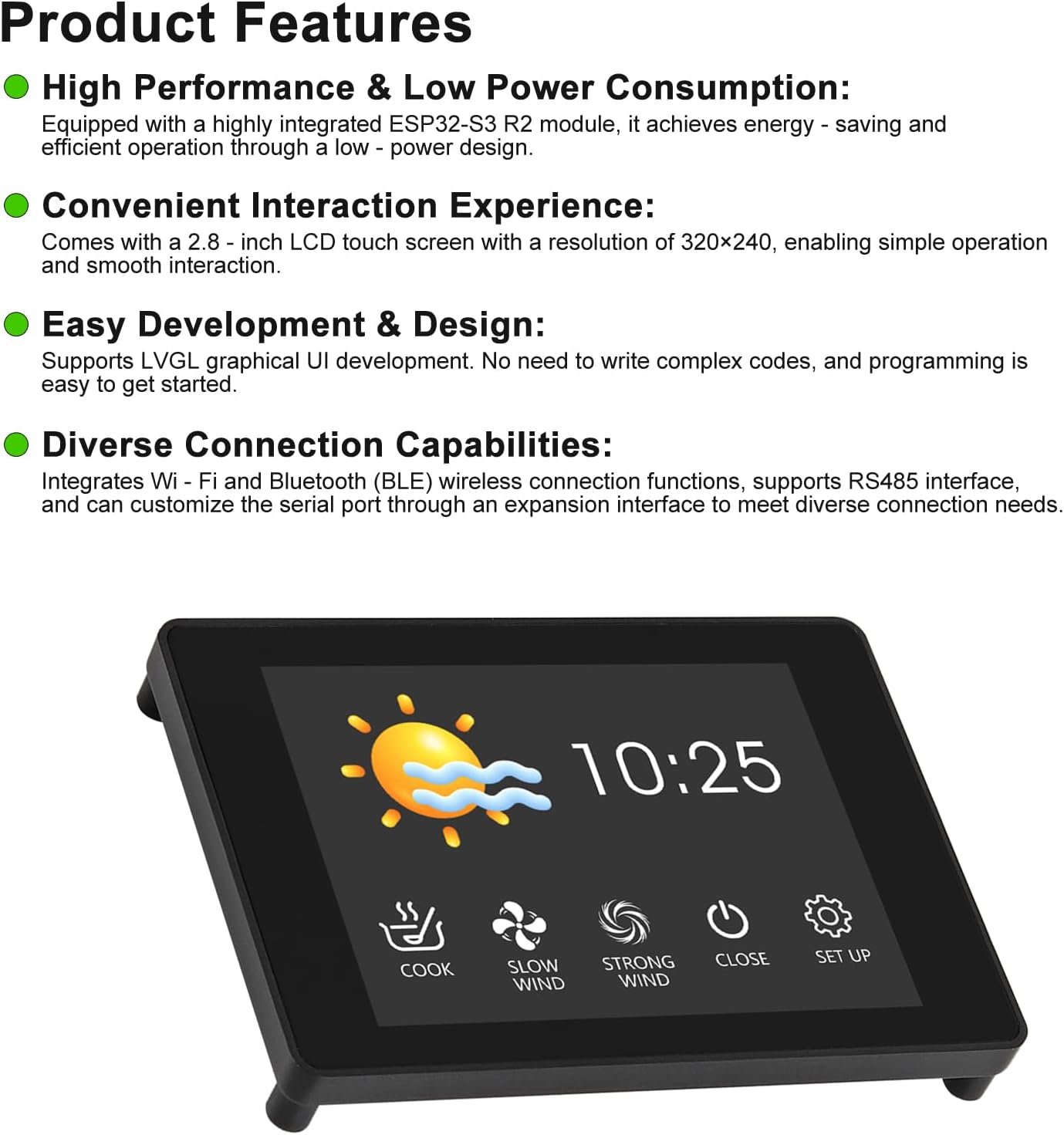

• High Performance & Low Power Consumption: Equipped with a highly integrated ESP32 - S3 R2 module, it achieves energy - saving and efficient operation through a low - power design
• Diverse Connection Capabilities: Integrates Wi - Fi and Bluetooth (BLE) wireless connection functions, supports RS485 interface, and can customize the serial port through an expansion interface to meet diverse connection needs
