Compatible for Ford Transit 150 2015-2020, Transit 250 2015-2020, Transit 350/350 HD 2015-2020，350HD L4H3 Brake Light Backup Camera with 7 inch Clip-on Mirror Monitor (Transit Van)
4.5 (132 items)
Limited Time SaleUS$81.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209163368 | Release Date | 2026/03/29 | List Price | US$54.00 | Model Number | 209163368 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

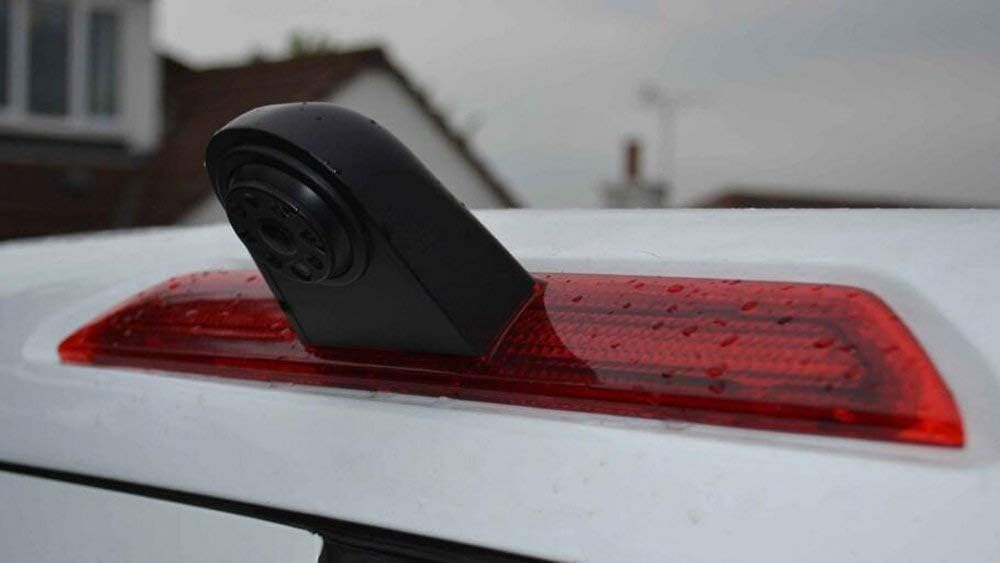

Backup camera is designed to completely replace the van’s third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.Application:Ford TourneoⅠ 2014-nowFord Tourneo Custom Ⅰ 2012-nowFord TransitⅠ2014-nowFord Transit Custom Ⅰ 2012-NowCamera Specification:Image sensor :1/3 Color CMOSResolution :756(H) X 504(V)TV line :600TV linesTV System :NTSCLens:2.5mmMin illumination :0Lux (LED ON)Viewing angle:170°Operation Temp. :-20℃~+70℃White Balance :Auto 7inch Clip-on Monitor Specification:Monitor size :7 inch(800 X 480)Contrast :16:9TV System :PAL/NTSCVideo input :AV1/AV2Power : DC12V-24VBrightness :400cd/㎡Installation way: Clip on your exist rear mirror (If you car doesn't install rear mirror ,please chose stand monitor)In The Box1 * Rear mirror monitor1* Backup Camera1*10M Extension Cable1*Power Cable1 * Manual1. How to wire it ?It is very easy for wiring.Backup camera wiring: The camera is 4PIN plug ,please connect it directly to AV input wiring of monitor power cable.Rear view monitor wiring :Red wire for power source, green wire for reverse, black for ground.2. Is it ok if I want this rear view camera to always be on ?Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter)that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
- Thrid brake light backup camera and review monitor for Transit 150 2015-2020, Transit 250 2015-2020, Transit 350/350 HD 2015-2020， 350HD 2014-2019， L4H32014-2019 ,Not to be confused with Transit Connect or Transit bus.
- 7 inch HD Monitor with 2 channels and the rearview image appears onto the screen automatically when you are parking car. Clip on your exist rear mirror ．If you car doesn't install rear mirror ,please chose stand monitor．
- Perfect companion product for Ford Transit backup camera. Video Output, V1/V2 Selecting. It Will Turn To Blue Screen When No Video Signal.
- Buildin 6pcs IR LEDs with light sensor for night mode which you can see clear in the dark，IP68 grade ensure long life time and stable work for years.
| UPC | 721295844659 |
|---|---|
| Lens | Wide Angle |
| Brand | KOHNEASO |
| Voltage | 12 Volts |
| Screen Size | 7 Inches |
| Manufacturer | YJD |
| Connector Type | RCA |
| Installation Type | Aftermarket |
| Compatible Devices | Monitor |
| Display Technology | LCD |
| Real Angle of View | 170 Degrees |
| Optical Sensor Size | 1/3 inch |
| Video Capture Resolution | 756x504 |
| Item Dimensions L x W x H | 11"L x 1"W x 20"H |
| Optical Sensor Technology | CMOS |
| Effective Still Resolution | 756 Pixels |
