Fischer SXR 3/8" x 4 3/4" (10 x 120mm) 50 pcs, T R Frame Fixing with Countersunk Head, Expansion Plug and Screw for Concrete, Brick & Hollow Blocks, Heavy-Duty Wall Anchor

fischer long shaft dowels for fixings of wooden structures with rust-proof countersunk screw The fischer long shaft dowel SXR is a dowel made of high-quality nylon. Thanks to the special dowel geometry, the SXR can be used in solid and perforated building materials. Due to the low anchoring depth of only 50 mm, the long-shaft dowel can be processed particularly economically. The low drilling depth saves time and reduces drill wear. The SXR is offered in diameters of 6, 8 and 10 mm up to a dowel length of 260 mm with countersunk screws made of galvanised steel, hot-dip galvanised steel and stainless steel. The European Technical Assessment provides additional safety. The SXR with the countersunk screw is particularly recommended for fixing wooden structures. The long shaft dowel has the following features: Contents: 50 x long shaft dowels SXR 10 x 120 T with rust-proof countersunk screw Drill nominal diameter: 10 mm. Dowel length: 120 mm. Min. Hole depth for through-hole mounting: 130 mm. Usable length at anchoring depth: 50 mm: 70 mm. Drive: TX40. ETA approval. fischer – innovative solutions. fischer fastening systems is the largest division of the Fischer group of companies. The specialist for secure and economical fixings and connections in construction has become one of the market leaders over the past 70 years. The product range ranges from chemical systems to steel anchors to plastic dowels. Whether heavy duty fixings in tunnel, bridge or power plant construction for the professional or wall and cavity dowels for the DIY enthusiast: fischer offers the right solution for every mounting problem.

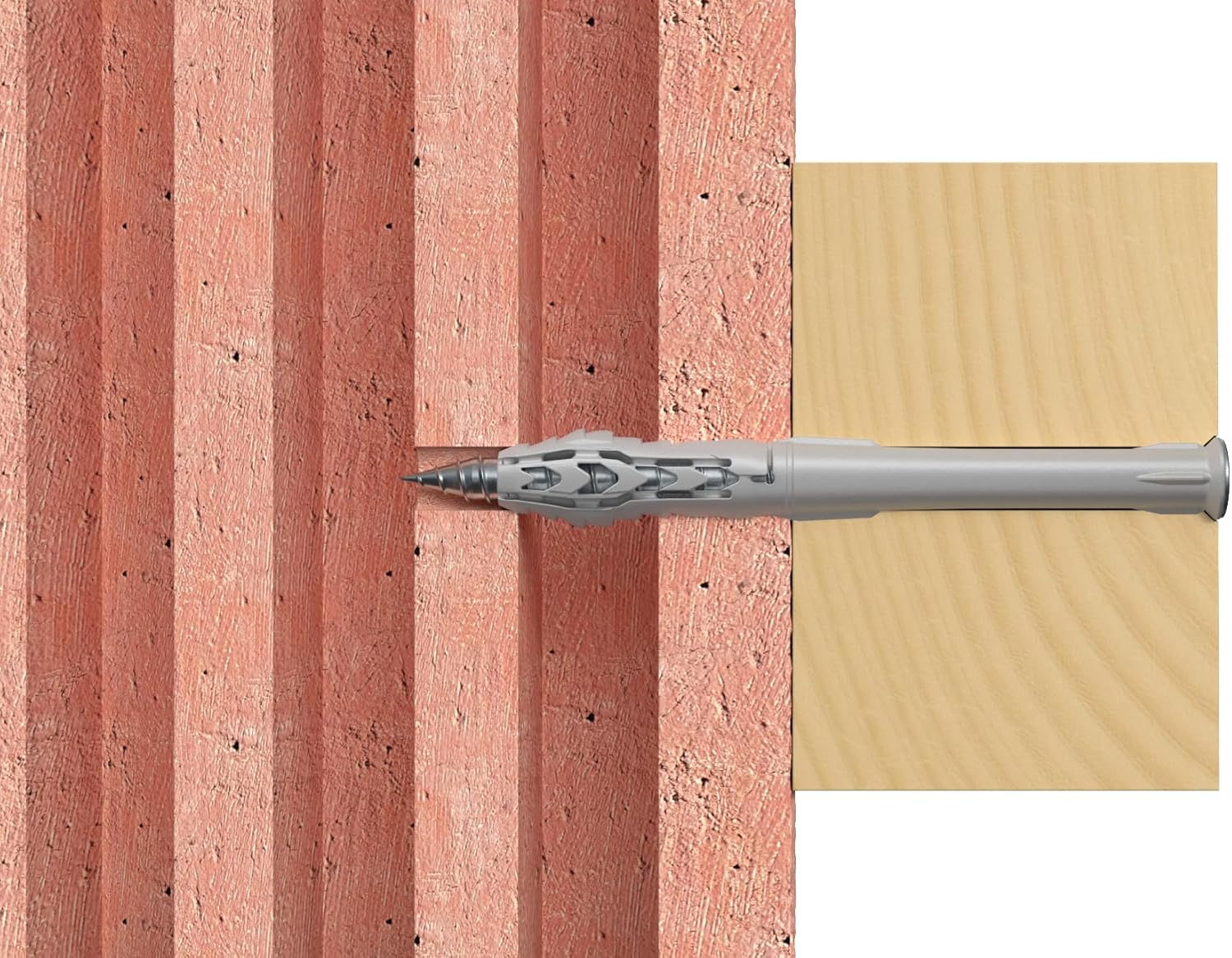

• The plug anchors itself in the cavity in perforated building materials.
• With pre-mounted safety screw with countersunk head.
• Low anchorage depth saves time and costs.

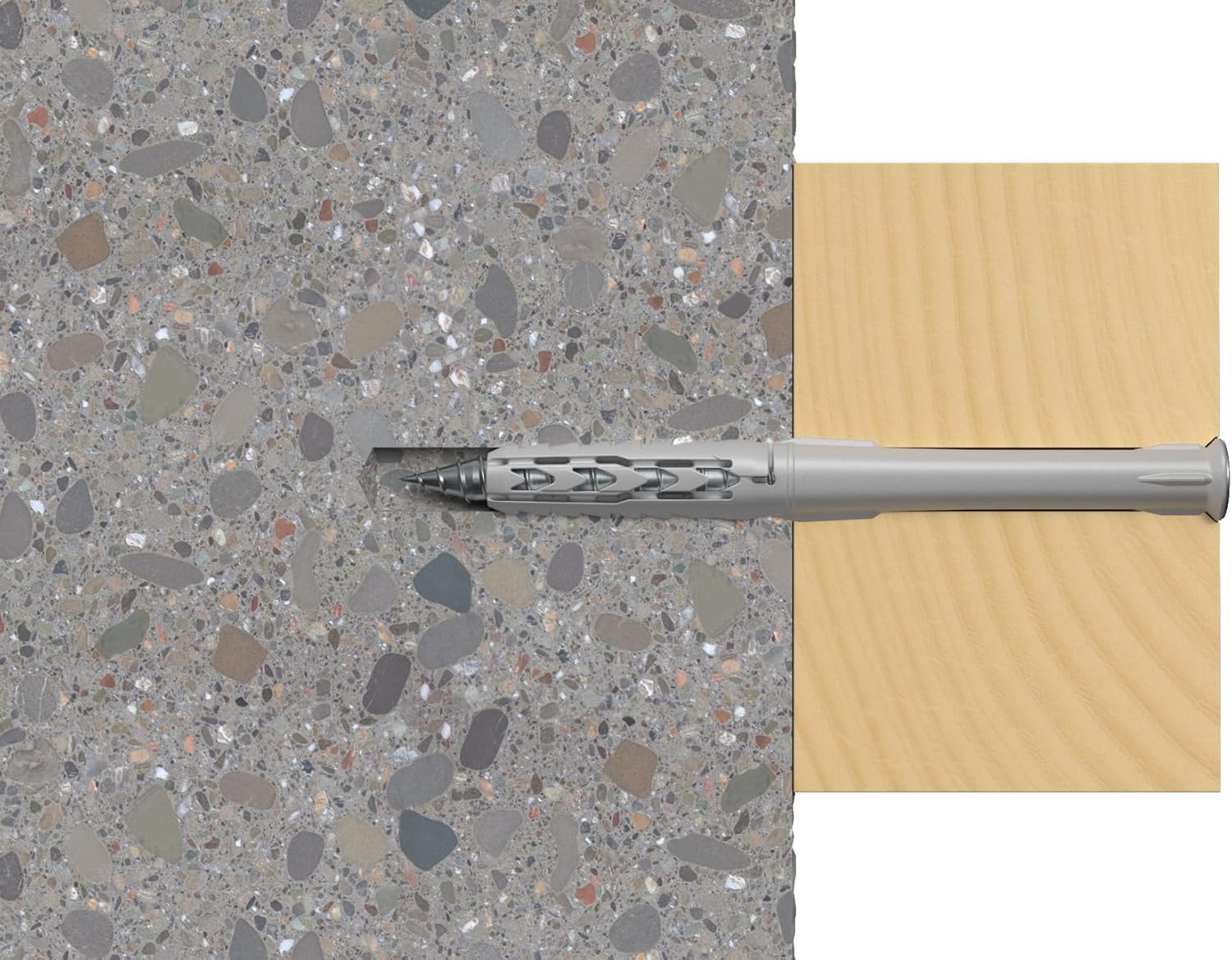

• Plug expands in solid building materials.
• ETA approval in concrete and masonry.
