Intelligent Insulation Resistance Meter Tester Insulation Testing Set Leakage Ammeter Current Test Table with Measuring Range 100k to 10TΩ (105~1013Ω) CNC 1V to 1000VDC Data Hold Function

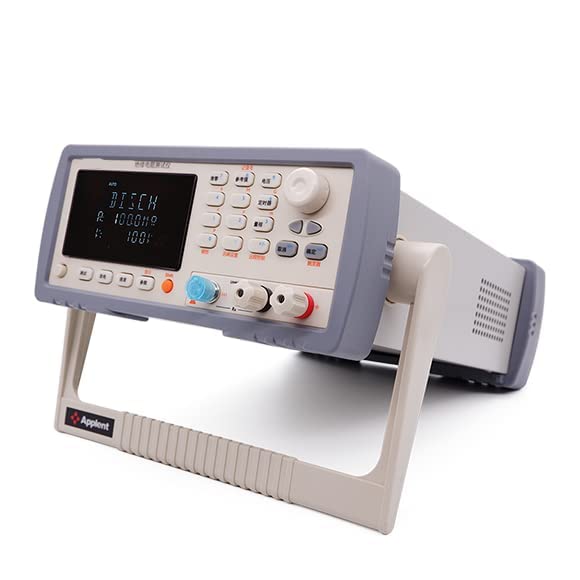

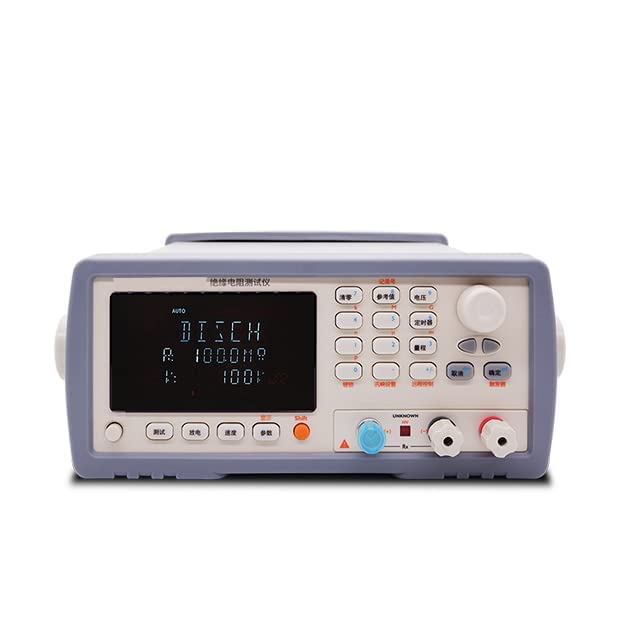

QIUSUO Intelligent Insulation Resistance Meter Tester Insulation Testing Set Leakage Ammeter Current Test Table with Measuring Range 100k to 10TΩ (105~1013Ω) CNC 1V to 1000VDC Data Hold Function Overview: ★The High Resistance Meter is an MCU controlled measuring instrument for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass/fail indicator provides a visual display of test results based on a preset limit. ★The High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components. ★The High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components. Features: ★Comparator (sorting) function: ## (built-in 30 groups of records) ##, which can perform GD/NG judgment on the tested part. ★Adjustable sound and display: Users can set the GD/NG sound and adjust the display brightness according to their needs. ★Compatible with SCPI programming specifications ★Optional 500mA pre-charge interface.(IF YOU NEED,PLEASE CONTACT US) ★Programming Language: SCPI Specification: ★Parameters:Leakage current & insulation resistance ★Output Voltage:NC 1V～1000VDC ★Accuracy:<10G: 3% ≥10G: 5% ≥100Ｇ: 10% ★Measurement Range:10k-1T0Ω(104~1013 Ω) ★Display Max:9999 ★Range:Automatic & Manual ★Speed:55 times/s, 15 times/s, 3 times/s ★Adjustment:short-circuit reset full range ★Result Display:show, current, resistance, peak value, sorthing results ★Charging Timer:999.9s ★Charging Current:200mA max ★Comparator:30 sets record,, GD/NG beep: GD,NG, OFF setting ★Interface:RS-232C, Handler interface ★Power Supply:Voltage:198VAC～240VAC Fre：50Hz Power :max 30VA ★Dimension & Weight:264*107*350mm / 5KG ★Accessories ATL507: Test fixture ; ATL801:RS232 cable ★Other Functions VFD 4 color display, Keyboard lock, data hold function Application: ★Used for field test or timed test and destructive test. ★Test the insulation resistance and leakage current of switchgear, relays, motors, generators and cables. ★Insulation resistance measurement of electronic components and equipment. ★Dielectric materials and insulation resistance measurement of wires and cables, etc.

• Comparator (sorting) function: ## (built-in 30 groups of records) ##, which can perform GD/NG judgment on the tested part.
• Adjustable sound and display: Users can set the GD/NG sound and adjust the display brightness according to their needs.
• Compatible with SCPI programming specifications
• Optional 500mA pre-charge interface.(IF YOU NEED,PLEASE CONTACT US)
• Programming Language: SCPI
