Yosoo Salt Chlorinator, Intelligent Control Self Pool Generator Power Outage Memory for Swimming Pools Spas Swim Tanks Endless Swimming Pools (ECO8)

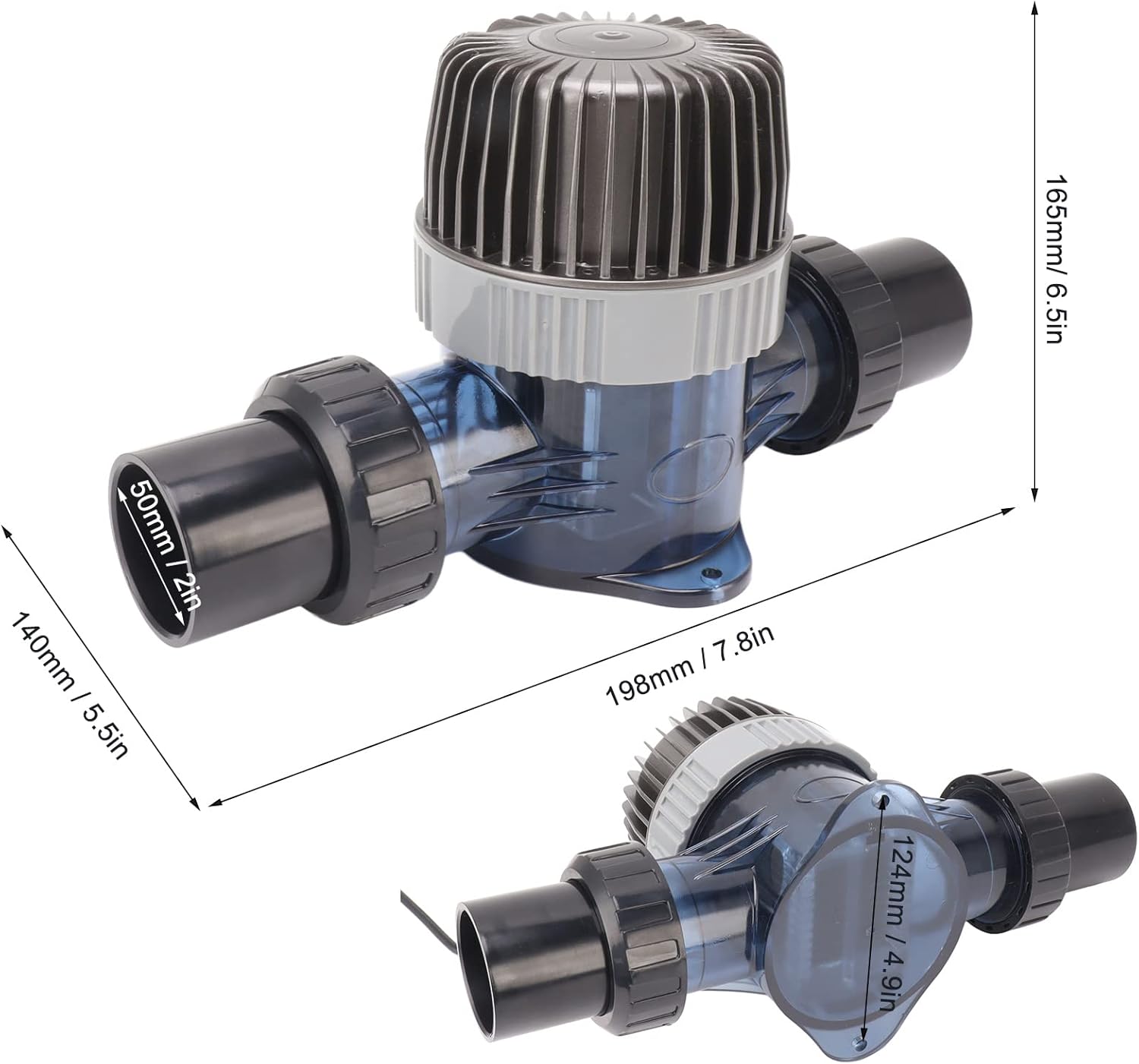

Spec: Item Type: Salt Chlorinator Material: ABS, Plate Size (Length x Width x Height): Approx. 198 x 140 x 165mm / 7.8 x 5.5 x 6.5in Bottom Mounting Hole Spacing: Approx. 124mm / 4.9in Circular Joint Size: Inner Diameter Approx. 50mm / 2in Salt Level: 1000-2000ppm Voltage: AC110-220V, 50-60Hz Output: DC24V Use: The need for salt and ​​ in swimming pools, spa pools, SPASWIM, swimming tanks, endless swimming pools, etc. Weight: Approx. 1844g / 65oz Package List: 1 x Salt Chlorinator 4 x Accessories 1 x User Manual How To Use: Installation Instructions: 1. Before use, it is necessary to ensure that the diameter of the pipeline to be installed is consistent with the installation diameter of the salt generator. 2. Before installing the chlorinator, close the valves at both ends of the pipeline. 3. Before installation, ​​ the oil or debris inside the installation pipe opening. 4. The salt generator should be installed on the pipeline before returning to the swimming pool in the water treatment process, and it should be installed on the bypass pipeline. An adjustable valve must be installed on the main pipeline. 5. When installing water pipe joints, PVC special glue should be used. 6. The power controller of the chlorination machine must be installed on a power supply with leakage switch protection. 7. The dispenser should be installed in a ventilated position to facilitate heat dissipation of the electrical ​​. Do not install in damp and rainy areas. 8. Avoid direct sunlight during use. Otherwise, it will shorten the lifespan of the product casing. Note: 1. Automatic power on refers to the system automatically starting up when the power is recovered in Box/Cover​​ of a power outage during the working process. 2. Memorizing the previous working state refers to working according to the current level before the system power outage or before the

• [Multifunctional Protection] Equipped with various protection systems for water levels, overload, high temperature, and electrode short circuit, ensuring safety and longevity.

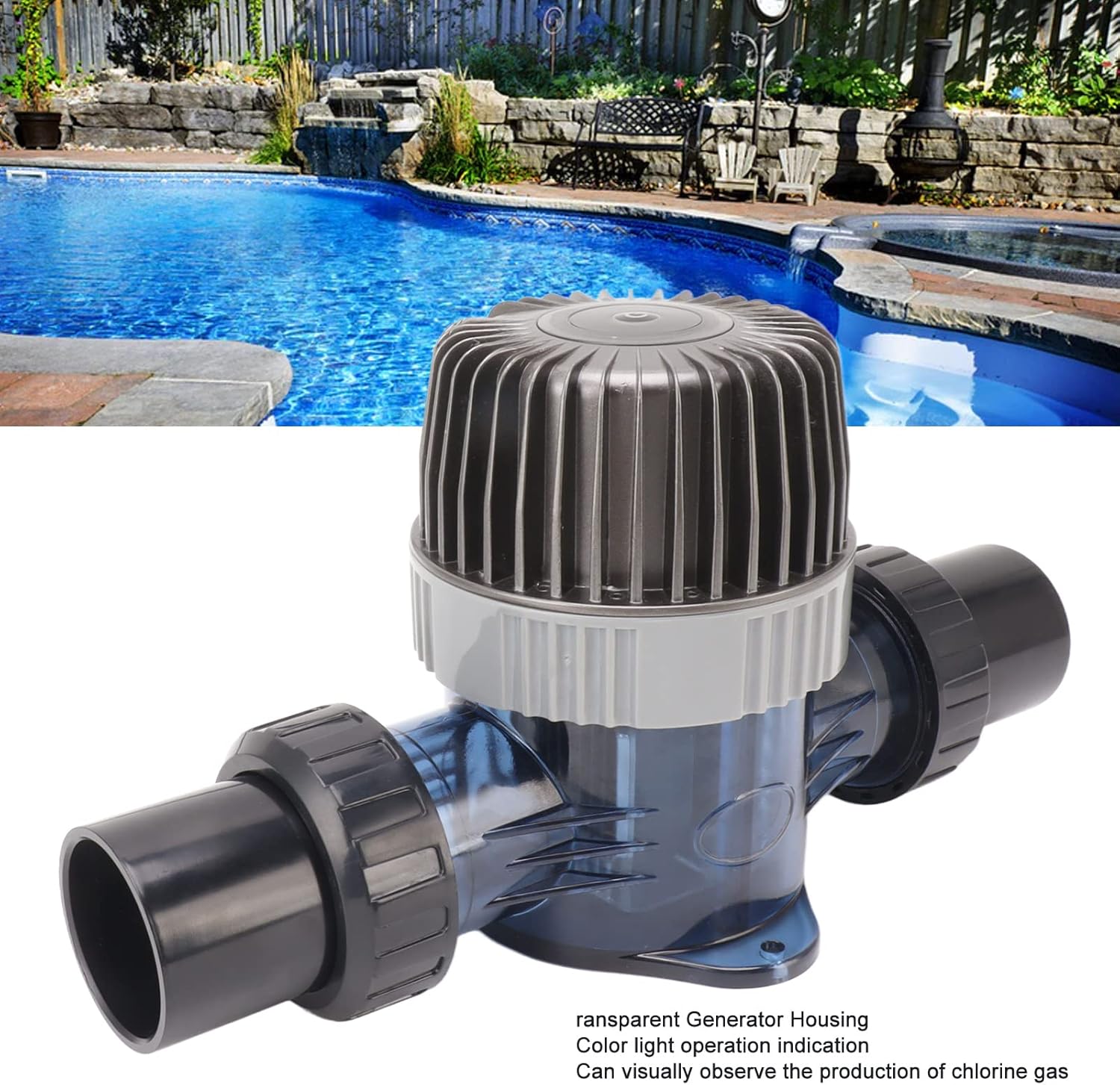

• [Efficient Design] The metal controller Cover ensures optimal heat dissipation, while the transparent casing and colored light indicator allow for easy monitoring of production.
• [Adjustable Production] With optional 2 gear settings, the output can be easily adjusted to meet specific pool requirements, reducing the need for constant manual adjustments.
• [Memory Function] This generator includes power outage memory, last operation memory, and salt content prompts, providing convenience and ease of use.
• [Intelligent Control Technology] The salt generator features one key start and stop, with a cyclic self- electrode function for hassle-free maintenance.
